Commercial robotHumanoid

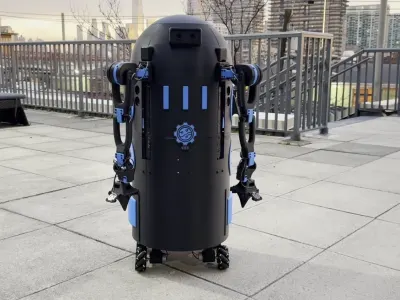

Vulcan Robotics Sourccey
Staged Robothub robot profile candidate. Seed source is Origin of Bots unless individual facts are marked official. Official facts are only from manufacturer/official pages or PDFs captured by the harness.
Data & sources
- Official
- 2
- Unofficial research
- 1
Key specifications
- Height
- 1.03 m tall
- Weight
- 15.88 kg
Specifications
View 1 sources
Dimensions
3- Footprint diameter
414 mm diameter
- Height
1.03 m tall
- Weight
15.88 kg
Actuation
37- Arm configuration
5 DOF + gripper
5 DOF plus 1 DOF gripper
- Arm joint count
6 revolute joints
6 revolute joints per arm
- Wheel torque
12 kg-cm torque
- Wheel diameter
96 mm diameter
- Linear actuator voltage
12V
- Linear actuator current
2A
- Shoulder yaw torque
30 kg-cm / 2.9 N-m
- Shoulder pitch torque
50 kg-cm / 4.9 N-m
- Elbow pitch torque
50 kg-cm / 4.9 N-m
- Wrist pitch torque
30 kg-cm / 2.9 N-m
- Wrist roll torque
30 kg-cm / 2.9 N-m
- Gripper torque
30 kg-cm / 2.9 N-m
- Base to shoulder yaw length
50 mm
- Shoulder yaw length
70 mm
- Shoulder pitch length
157.5 mm
- Elbow pitch length
160 mm
- Wrist pitch length
73 mm
- Gripper length
110 mm
- Structural material
PLA
- Cosmetic part infill
10% infill, crosshatch
- Load bearing infill
20-40% infill, gyroid
- Layer height
0.08-0.28 mm
- Fasteners
Metric steel: M2, M2.5, M3
- Service tool
Electric screwdriver
- Structural adhesive
No adhesives required for structural joints
- Open replacement parts
Public STLs allow replacements
- Replaceable servos
Individually addressable and replaceable
- Smart servos
Feetech STS3215 and STS3250
- Servo driver
Waveshare Bus Servo Driver
- Control mode
Absolute position control with configurable velocity and torque limits
- Backdrivability
Limited due to high resistance under load
- Teleoperator motor torque
15 kg-cm torque
- Joint limit calibration
Autocalibration moves to mechanical limits detected by current feedback
- Zeroing
Absolute encoder-based, with homing and quick preset zeroing
- Handle clearance
25 mm
- Arm side offset
+162.5 mm
- Arm out offset
+622.5 mm
Power
6- Processor regulation
5.1V regulated
- Battery
12V 10Ah LiFePO4
- Battery cycle rating
Up to 5000 cycles
- Compute regulation
5.1V regulated through Pi 5 power HAT
- Charging
2A and 5A 12V DC chargers
- Power regulation
Buck converter, central power rail with local regulation
Mobility
2- Mobility platform
4 mecanum wheels
- Omnidirectional drive speed
60 rpm max
Manipulation
3- Linear actuator load
100N load
- End effector
Single actuated gripper
- Gripper structure
PLA structure with 5% TPE pad
Sensors
17- Vision field of view
120 degree FOV
- Camera model
U20CAM-720p
- Camera frame rate
30 fps
- Wheel encoder status
no encoders
- Joint position encoder
Absolute encoder 0-4095
- Velocity feedback
Derived from position feedback
- Current torque feedback
Servo tracks current and torque
- Camera mount
Fixed head mount angled 20 degrees down and end effector mount
- Default camera resolution
360x240
- Maximum camera resolution
640x480
- Sensor synchronization
Software timestamping with joint state data
- Lidar
360 degree 2D LiDAR distance sensor
- Lidar scan coverage
180 degree 2D omnidirectional scanning
- Lidar scan rate
5-13 Hz
- Lidar range
Up to 12 m on white objects with 70% reflectivity
- Lidar sampling rate
8000 samples per second samples/s
- Image data
30 fps, RGB, configurable resolution (default 360x240)
Compute
22- Main processor
Raspberry Pi 5
- Pcie usb hat
PCIe USB hat
- Wheel control
Open-loop PWM
- Compute attachments
PCIe to USB HAT, cooling fan
- Io layout
USB, GPIO
- Motor control bus
Daisy-chained UART
- Uart baud rate
1,000,000 baud
- Servo ids
1-6 left, 7-12 right
- Software stack
Sourccey desktop and Lerobot-Vulcan tooling
- Aixvla micromodels
4 micromodels: folding T-shirts, shorts, jeans/pants, and long shirts
- Motor data
Positional only
- Image storage
.mp4
- Motor storage
.parquet
- Metadata storage
JSON metadata
- On robot interface
7-inch 1024x600 touchscreen
- Desktop software
Downloadable app
- State representation
Joint angles derived from motor encoders
- Configuration storage
JSON per arm
- Calibration file storage
Robot calibration files on Raspberry Pi, teleoperator calibration on host computer
- Open source status
Hardware, electrical, and software designs are open source
- Lerobot compatibility
Sourccey uses an up-to-date Lerobot-Vulcan fork
- Developer resources
Hardware, electrical, software, LeRobot-compatible fork, and developer community
Commercial
1- Availability status
Coming Soon
Other
11- 3d printer
Bambu P1S, 0.4 mm nozzle
- Networking
Local Wi-Fi or direct-to-Pi access point
- Camera interface
USB 2.0
- Power protection
Fusing, overcurrent protection, and power cutoff
- Floor environment
Even floor ideal
- Carpet environment
Shallow or medium carpets will work
- Recommended flooring
Hardwood or tile recommended
- Operating temperature
0-50 C
- Software limits
Torque, velocity, and acceleration limits enforced in software and servo firmware
- Material safety
Low-mass PLA parts reduce injury risk
- Gripper safety
Flexible TPE gripper pads and rounded edges mitigate pinch hazards
