Official-source profile for 1X NEO. Facts are extracted from the official NEO product page and preserved as RobotSpecFact rows.
Commercial robotHumanoid
1X Technologies 1X NEO
Official-source profile for 1X NEO. Facts are extracted from the official NEO product page and preserved as RobotSpecFact rows.
Data & sources
- Official
- 3
- Unofficial research
- 2
Key specifications
- Height
- 1.676 m
- Weight
- 29.94 kg
- Runtime
- 4 h
- Walking speed
- 1.4 m/s
Specifications
Physical specifications
2- Height
1.676 m
- Weight
29.94 kg
Actuation
13- Hand dof total
44
22
25 DOF tendon-driven hands
- Degrees of freedom per arm
7 DOF
- Neck dof
3
- Spine dof
2
- Degrees of freedom per leg
6 DOF
- Hand speed
8.0 m/s
- Body material structure
Soft body with custom lattice polymer structure
- Tendon drive transmission
1X’s patented Tendon Drive
tendon-based transmissions
- Soft body construction
head-to-toe soft body
- Lattice polymer structure
custom 3D lattice polymer structures
- Torque accuracy percent
2%
- Backdrivability percent
95%
- Repetition mm
0.1 mm
Battery and power
3- Battery capacity
842 Wh
- Runtime
4 h
- Quick charge rate
6 min/hour runtime
Mobility
2- Maximum run speed
6.2 m/s
- Walking speed
1.4 m/s
Manipulation
3- Lift capacity
154 lb
over 150 pounds (over 68 kg)
- Carry capacity
55 lb
55 pounds (24.95 kg)
- Arm payload
18 lb
Sensors
5- Localization accuracy mm
1 mm
- Imus
Linkwise differential (velocity and accelerations)
- Localization calibration
AI based continous adaption
- Microphone count
4 beamforming microphones
- Camera configuration
Dual 8.85MP 90Hz Stereo Fisheye
Compute
2- Compute chipset
1X NEO Cortex (Nvidia Jetson Thor)
- Ai compute fp4 tflops
Up to 2070 FP4 TFLOPS
Commercial information
4- Price
USD 20,000
- First consumer home shipping year
2026
- Initial delivery market and year
United States in 2026
- Other market expansion year
2027
Other
13- Noise level
22 dB
- Wireless connectivity
built-in communication with WiFi, Bluetooth, and 5G
- Wifi
WiFi
- Bluetooth
Bluetooth
- 5g connectivity
5G
- Speaker stage count
three-stage speaker in the pelvis and chest area
3 stage speaker in pelvis and chest area
- Available colors
Tan; Gray; Dark Brown
- Joint structure
No pinchpoints
- Head injury criterion
<250
- Low inertia tendon drives
Low inertia tendon drives
- Hands ip rating
IP68 (submersible)
- Body ip rating
IP44 (splash proof)
- Communication interfaces
Wifi, Bluetooth, 5G
Detailed profile

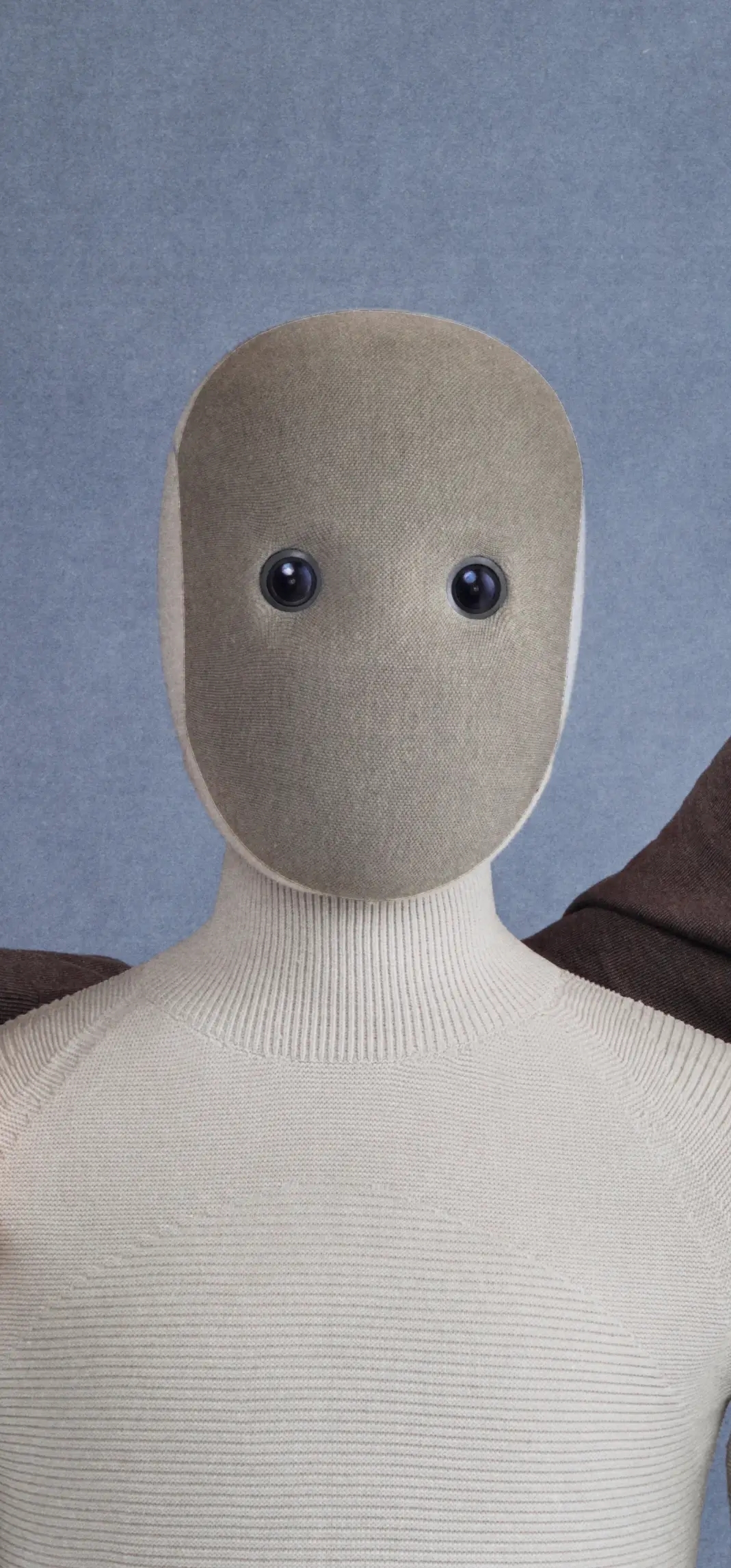

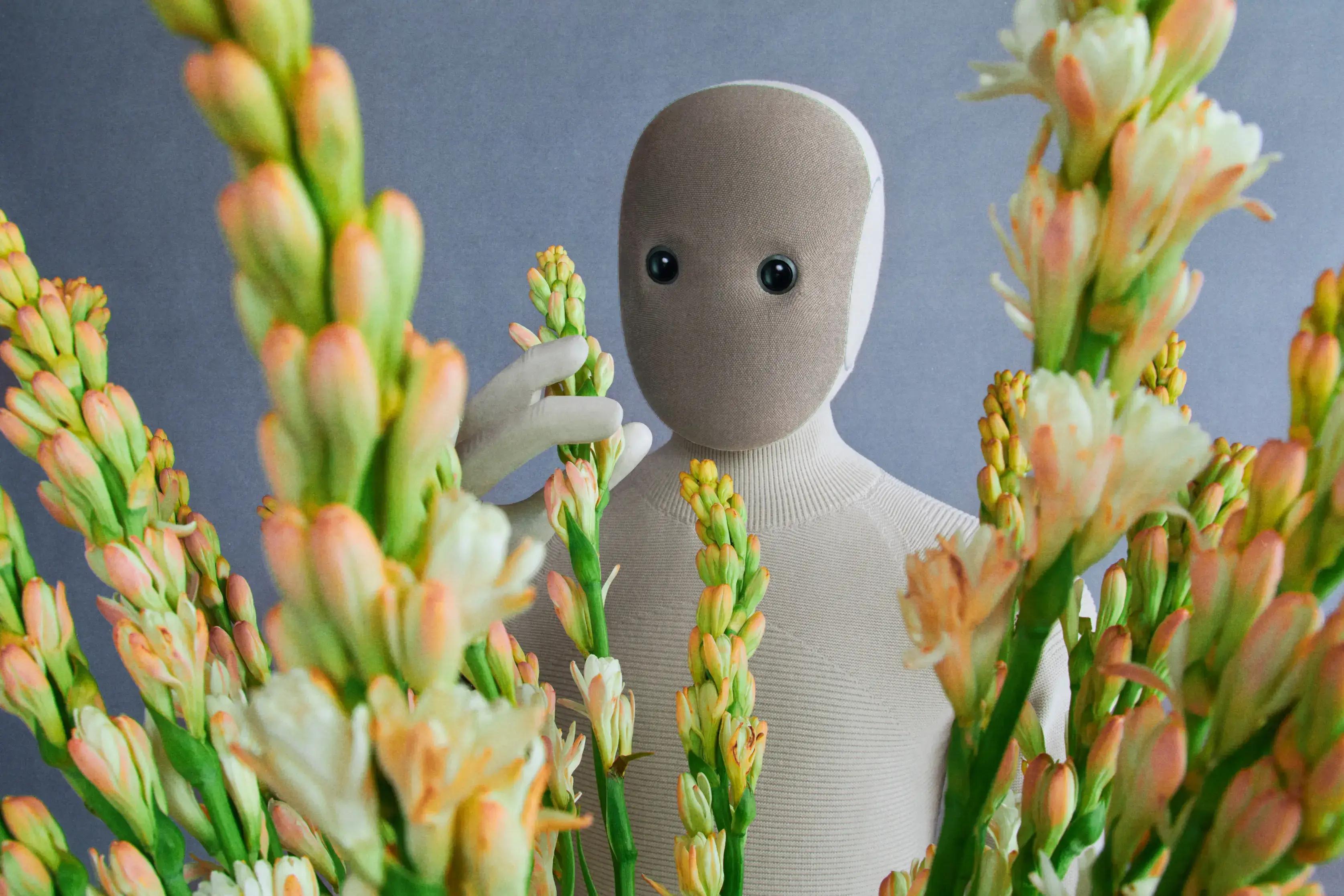

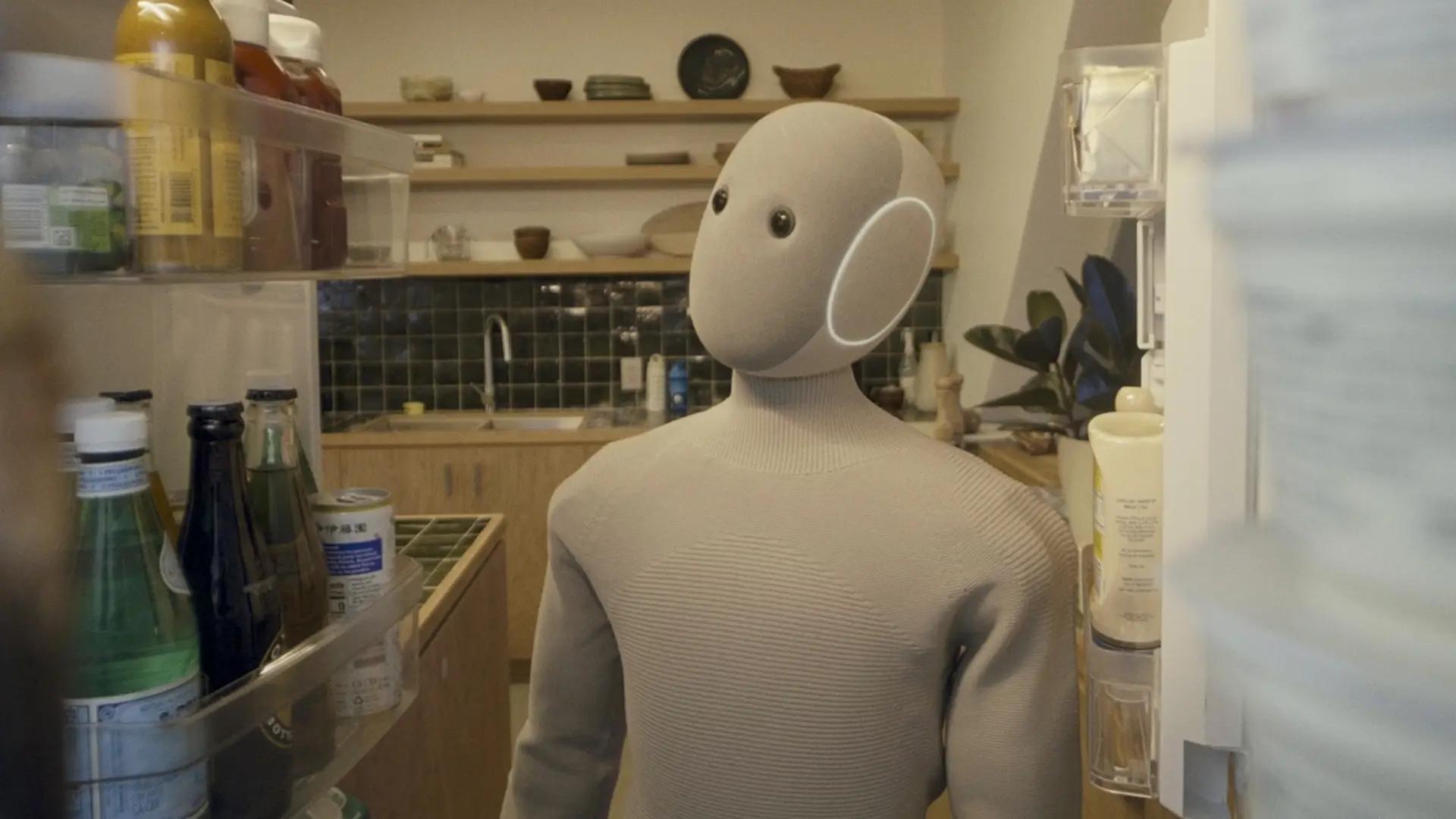

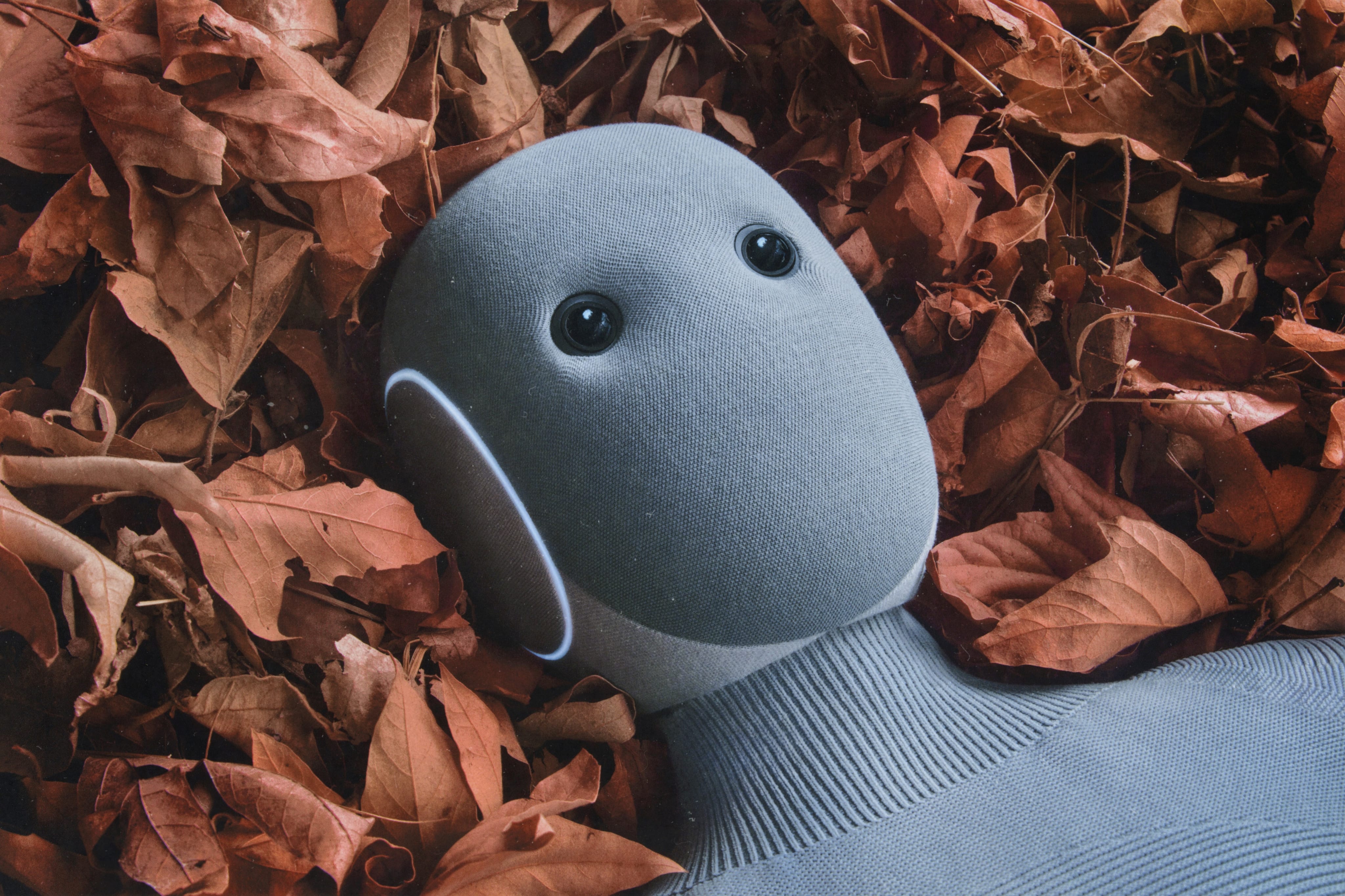

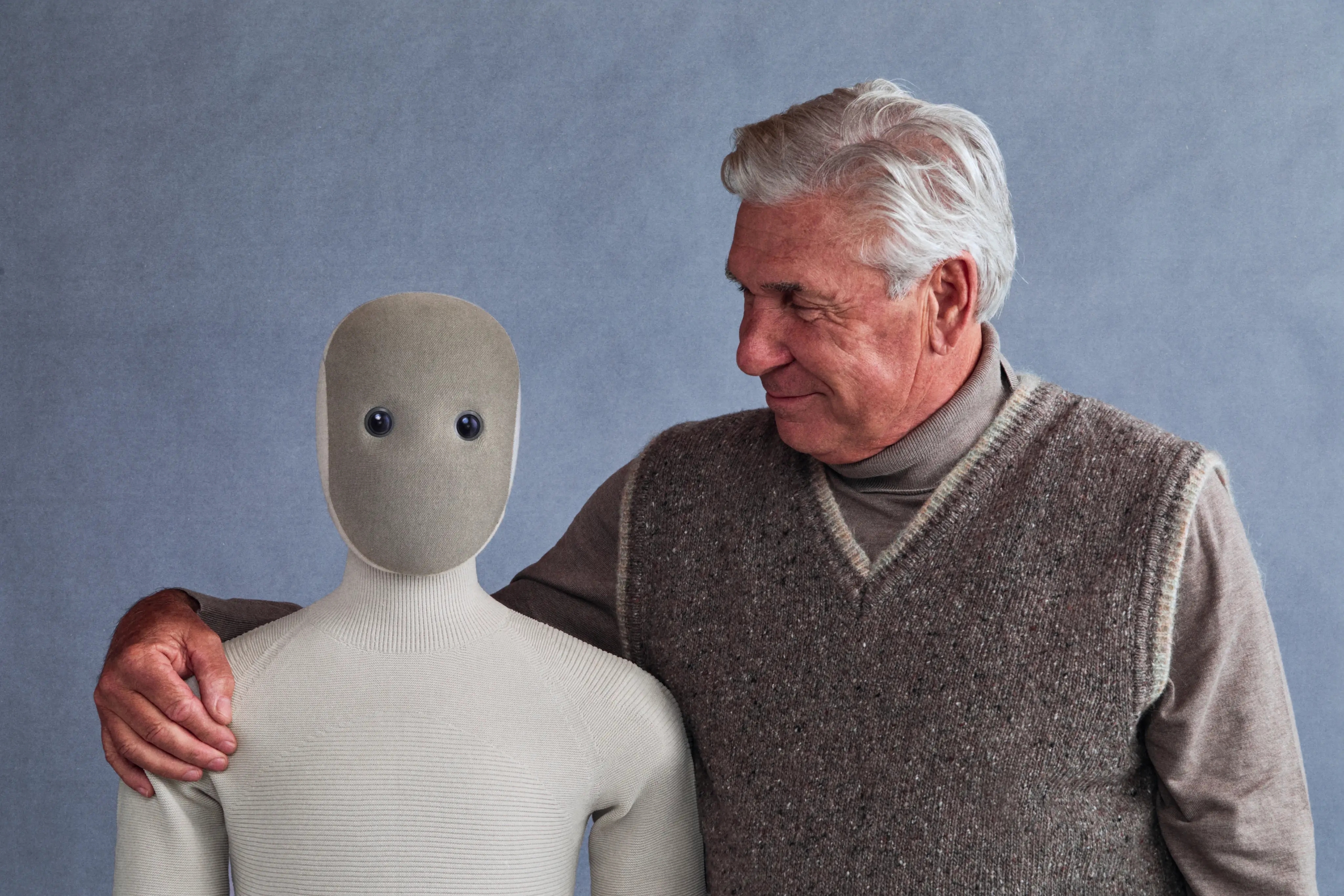

Gallery
