Commercial robotHumanoid
Noetix N2
1 editions
Official specs 25
Commercial robotHumanoid

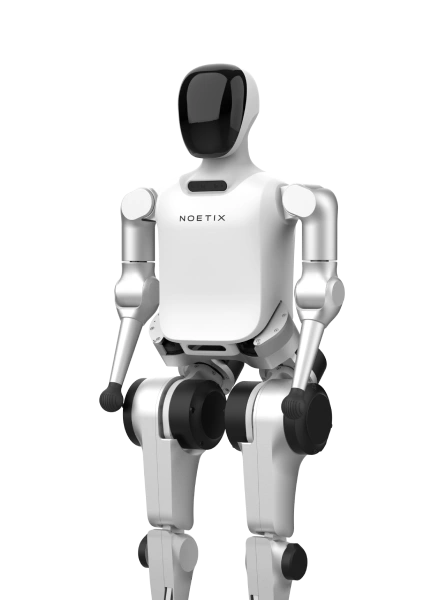

Noetix N2 (Athlete)
edition_or_variant_label: Athlete · Dimensions: 118 × 47 × 29 cm
Data & sources
- Official
- 1
- Unofficial research
- 3
Key specifications
- Weight
- about 30 kg
- Total degrees of freedom
- 18 DOF
- Runtime
- 1–2 h
- Standing dimensions
- 118 × 47 × 29 cm
Specifications
Dimensions
| Weight | about 30 kg |
|---|---|
| Standing dimensions | 118 × 47 × 29 cm |
Actuation
| Total degrees of freedom | 18 DOF |
|---|---|
| Degrees of freedom per leg | 5 DOF |
| Degrees of freedom per arm | 4 DOF |
| Knee torque max | 150 N·m |
Power
| Battery voltage | 48 V |
|---|---|
| Battery capacity | 7 Ah |
| Runtime | 1–2 h |
Manipulation
| End effector | spherical hand/five-fingered hand |
|---|---|
| Continuous walking payload | about 5 kg |
Compute
| Compute capacity tops | 6 TOPS |
|---|---|
| Optional compute module | NVIDIA Jetson Orin Nano Super |
| High compute capacity tops | 6+67 TOPS |
Sensors
| Depth camera | depth camera |
|---|---|
| Inertial measurement unit | IMU |
Gallery
