EngineAI T800

Name: EngineAI T800
Brand: EngineAI

EngineAI T800 combines high-torque joints, multimodal perception, and modular compute across four manufacturer-listed configurations.

EngineAI

Data & sources

Official: 4
Unofficial research: 6
Forum posts: 5

Key specifications

Height: 1.73 m
Weight: 75–85 kg
Total degrees of freedom: 29 DOF
Single-arm payload: 5 kg

Compare editions

Official specifications

Official edition comparison
Specification	Basic Edition	Eco Edition (Open-Source Edition)	Enhanced Edition (Pro Edition)	Flagship Edition (Max Edition)
Key specifications
Price	40500 USD[1]	54000 USD[1]	Champagne Gold, limited to 50 units at ¥260,000[1]

Common specifications

Reference ↗

Dimensions

Dimensions specifications
Height	1.73 m
Weight	75–85 kg

Actuation

Actuation specifications
Total degrees of freedom	29 DOF
Maximum joint torque	450 N·m
Exterior panel material	Aviation-grade aluminum alloy panels, offering a combination of lightweight properties and impact resistance to perform in complex environments
Lower leg thigh length	91 cm
Arm length	60 cm
Waist movement range	Waist: Y-251°~71°
Hip movement range	Hip: R-118°~62°, P-190°~130°, Y-81°~206°
Knee movement range	Knee: P-15°~135°
Foot movement range	Foot: P-39°~39°, R-15°~15°
Head movement range	Head: P-30°~30°, Y-70°~70°
Shoulder movement range	Shoulder: P-170°~160°, R-140°~22°, Y-150°~150°
Elbow movement range	Elbow: P-131°~15°, R-150°~150°
Wrist movement range	Wrist: P:-25°~25°, R-35°~65°
Hollow internal wiring	Fully articulated hollow internal wiring
Joint encoder	Absolute dual encoder
Body dof	29 DOF

Power

Power specifications
Battery architecture	modular solid-state lithium battery
Runtime	4–5 h
Ternary lithium battery full charge voltage	71.4 V
Ternary lithium battery capacity	20 Ah
Solid state battery full charge voltage	74.8 V
Solid state battery capacity	40 Ah
Ternary lithium battery charging duration	2.5 h
Solid state battery charging duration	3 h
Battery type	Standard ternary lithium battery; solid-state battery available as option
Quick release battery	√
Battery options	ternary lithium 71.4 V / 20 Ah or solid-state 74.8 V / 40 Ah

Commercial information

Commercial information specifications
Price	180,000 yuan

Sensors

Sensors specifications
Omnidirectional radar	360° omnidirectional radar
Dexterous hand tactile sensing	integrated tactile sensing
Lidar perception	360° LiDAR for multi-dimensional perception
Microphone	Equipped
Tactile sensing	tactile sensing

Compute

Compute specifications
Self developed core technology stack	fully self-developed core technology stack
Development focus	ontology design, motion algorithms, and embodied intelligence
Robot computer	Intel Module (Optional RK3588)

Manipulation

Manipulation specifications
Dexterous hand dof	7 DOF per hand
Single-arm payload	5 kg
Hand dof per hand	7 DOF per hand
Hand payload	5 kg

Mobility

Mobility specifications
Maximum speed	≥3 m/s

Other

Other specifications
Communication interfaces	Wi-Fi + Bluetooth + USB + LAN
Lighting configuration	2 headlamps + 2 chest lamps + knee lamps
Handheld remote control	Equipped

Reference

01 · Official source
Official · manufacturer_product_page · source-5ce6ef092714 ↗
55 linked specifications
02 · Official source
The product launch process has officially commenced, with the T800 priced starting at 180,000 yuan. ↗
3 linked specifications
03 · Official source
Official · manufacturer_home_page · source-2a9d0b1a234f ↗
3 linked specifications

Detailed profile

EngineAI T800 combines high-torque joints, multimodal perception, and modular compute across four manufacturer-listed configurations.

Gallery

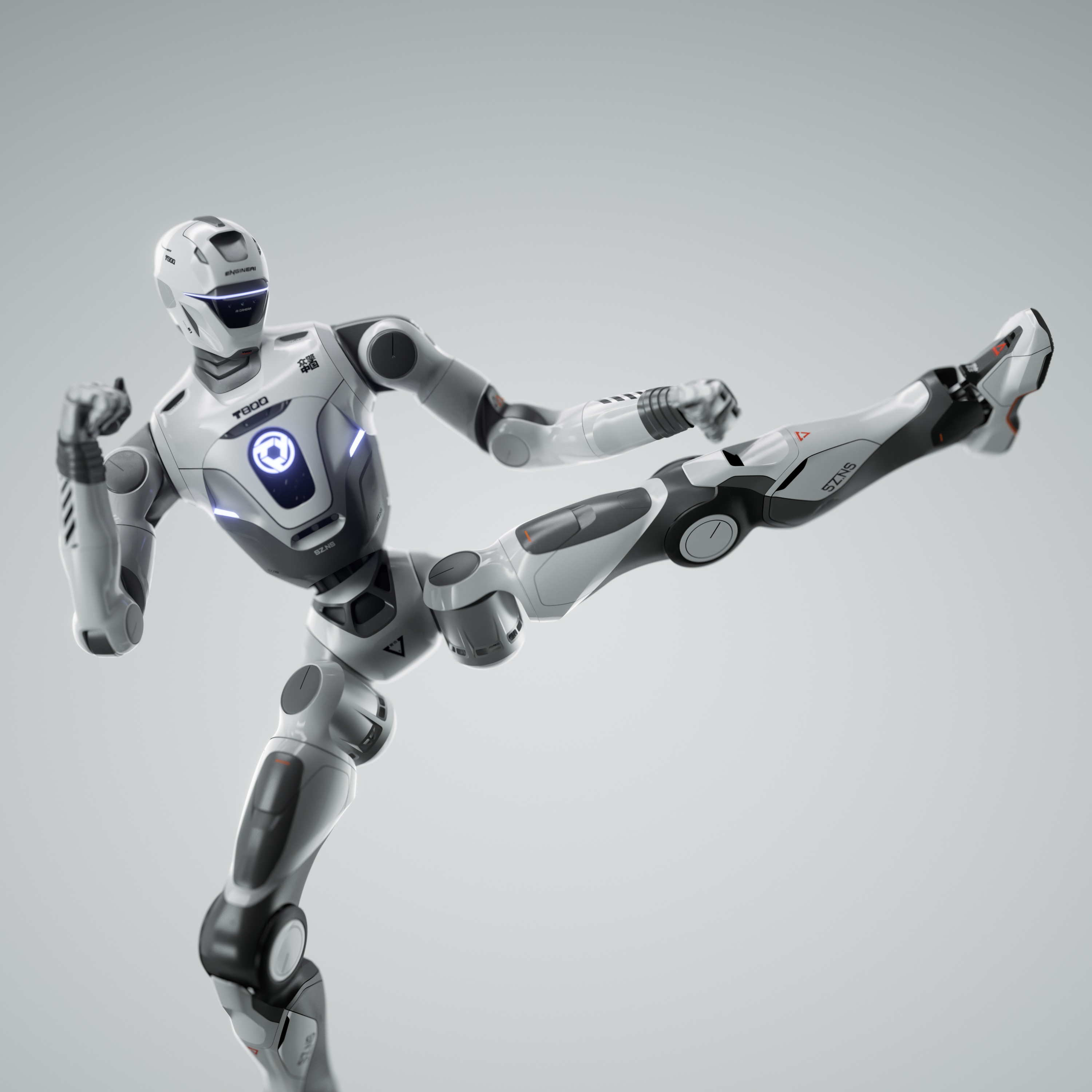

EngineAI T800 — EngineAI T800 official product image (2)

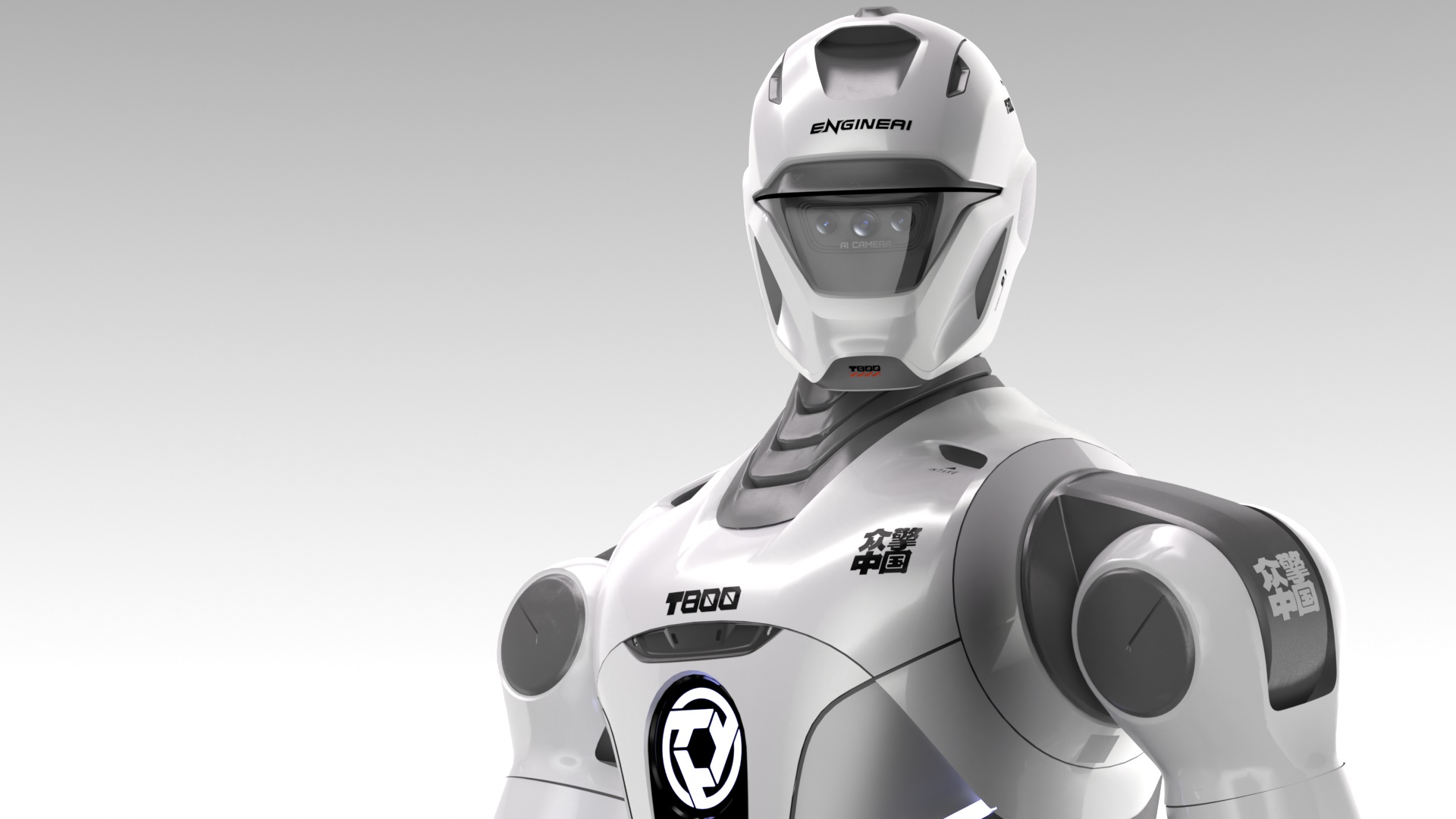

EngineAI T800 — EngineAI T800 official product image (3)

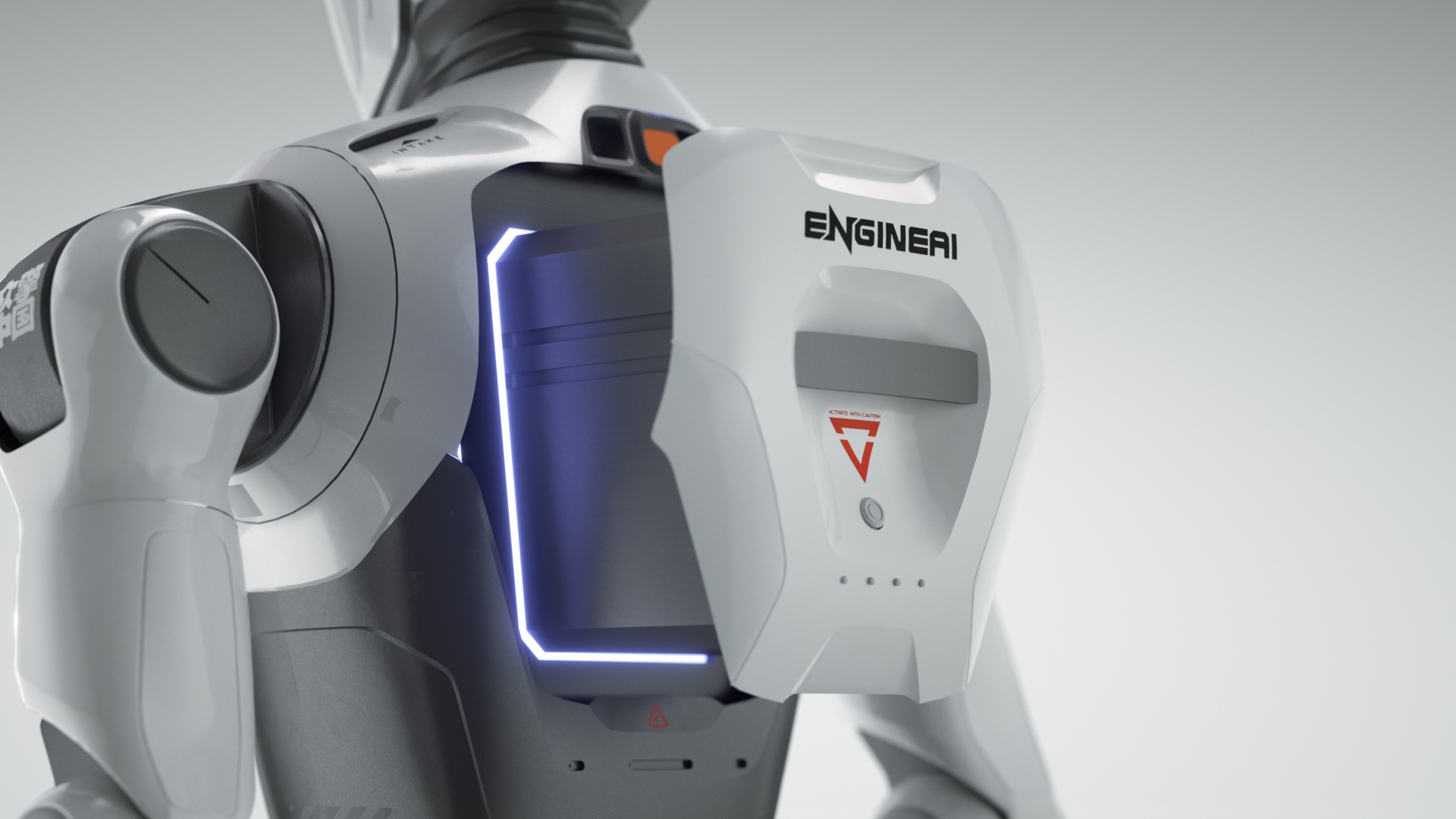

EngineAI T800 — EngineAI T800 official product image (4)

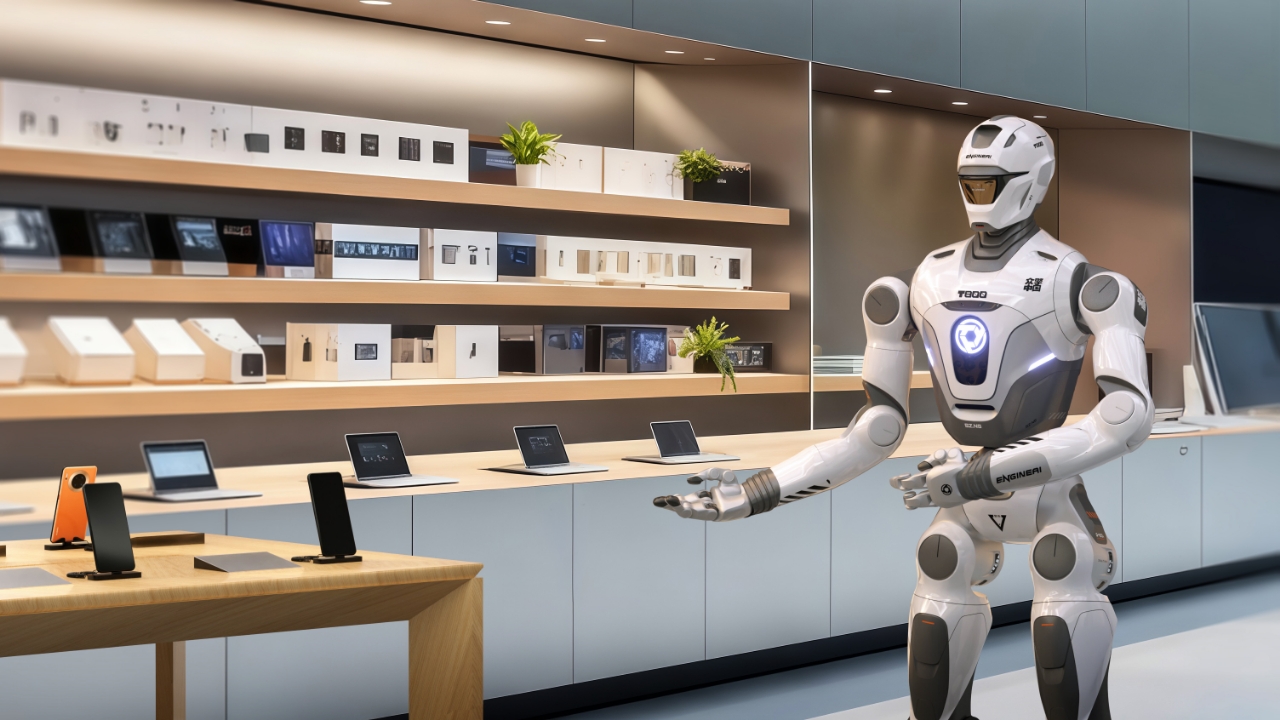

EngineAI T800 — EngineAI T800 official product image (5)

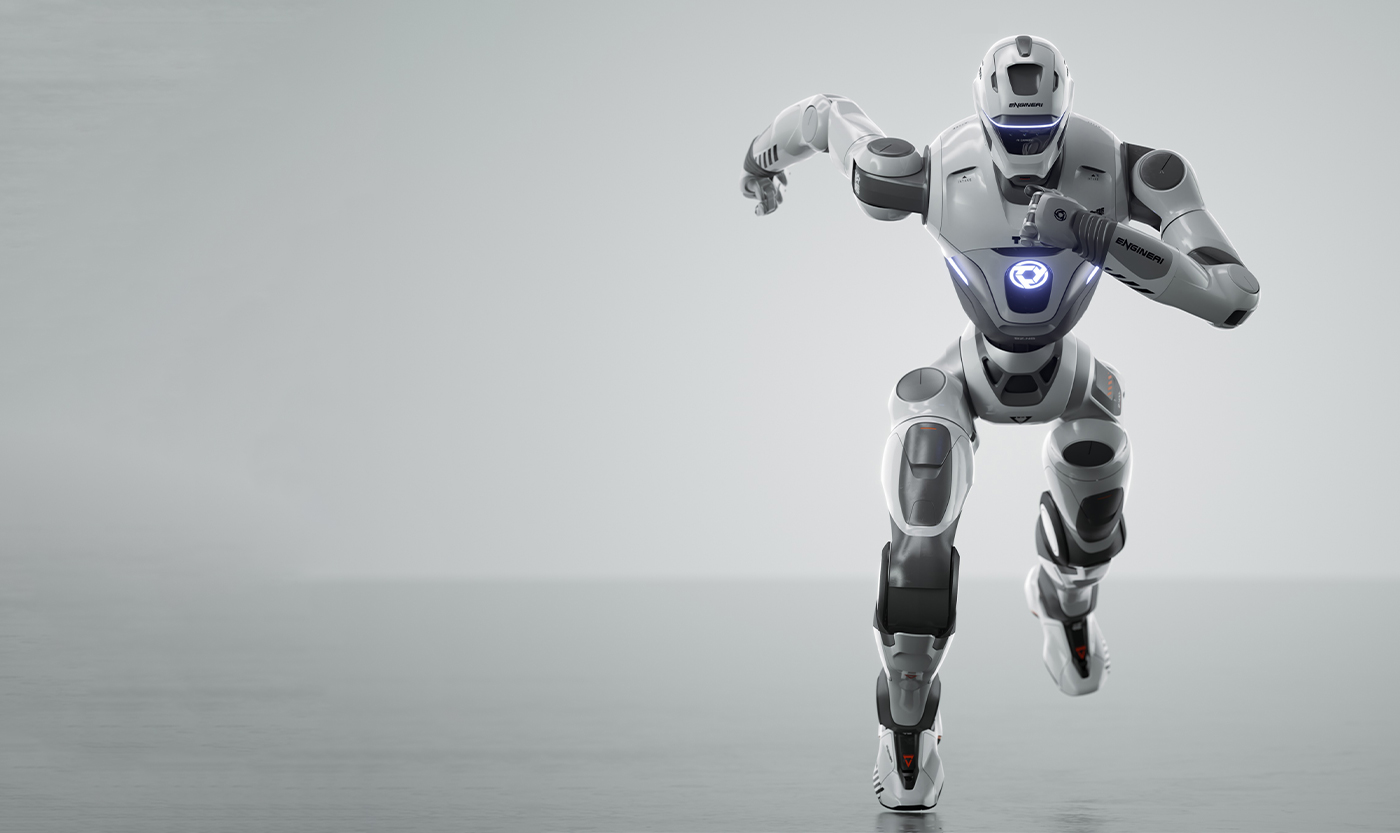

EngineAI T800 — EngineAI T800 official product image (6)

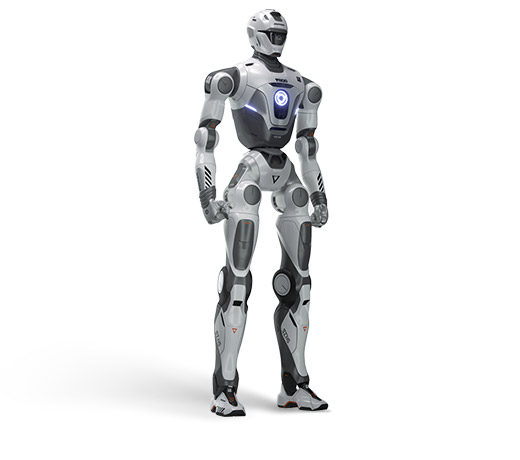

EngineAI T800 — EngineAI T800 official product image (7)

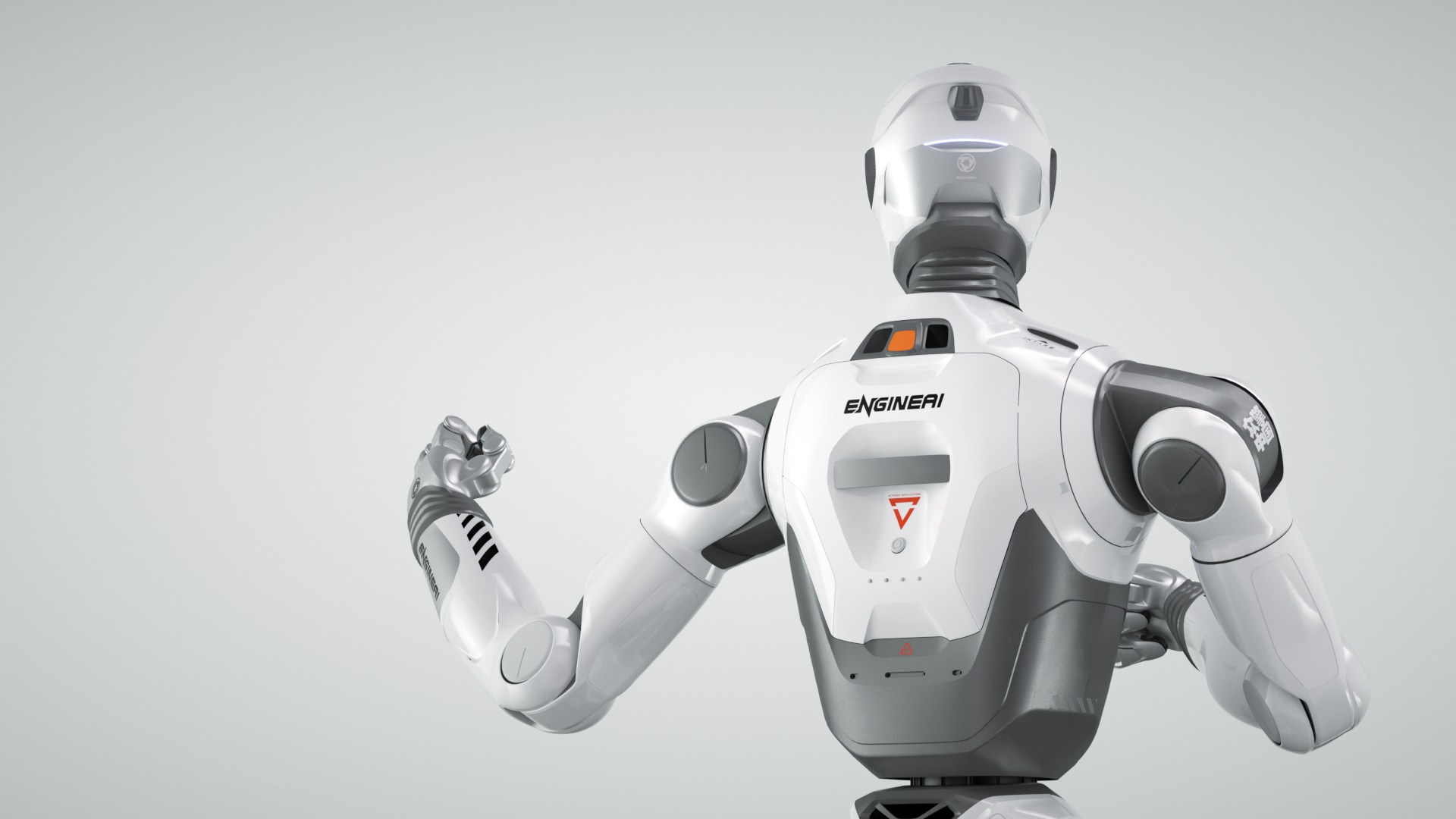

EngineAI T800 — EngineAI T800 official product image (8)

Actuation
Lower leg thigh length	91 cm[1]	91 cm[1]	—	—
Arm length	60 cm[1]	60 cm[1]	—	—
Waist degrees of freedom	1 DOF[1]	1 DOF[1]	1 DOF[1]	3 DOF[1]
Degrees of freedom per arm	5 DOF per arm[1]	5 DOF per arm[1]	5 DOF per arm[1]	7 DOF per arm[1]
Joint type	Planetary[1]	Planetary[1]	Planetary + Linear Force Control[1]	Planetary + Linear Force Control[1]
Neck dof	2 DOF[1]	—	—	—

Sensors
Perception sensor	Intel Depth Camera[1]	—	—	—
Perception sensor suite	—	A proprietary system (stereoscopic vision + LiDAR) (featuring an open visual hardware interface, compatible with Intel and others)[1]	—	A proprietary system (stereoscopic vision + LiDAR) (featuring an open visual hardware interface, compatible with Intel and others)[1]

Other
Communication interfaces	Wi-Fi + Bluetooth + USB + LAN[1]	Wi-Fi + Bluetooth + USB + LAN[1]	—	—
Loudspeaker	Equipped[1]	Equipped[1]	—	Equipped[1]
Communications interfaces	—	—	Wi-Fi + Bluetooth + USB + LAN[1]	Wi-Fi + Bluetooth + USB + LAN[1]

Compute
Secondary development support	—	Support[1]	Support[1]	Support[1]
High performance compute module	Orin NX 16G[1]	AGX Orin 64G (computing power customisable upgrade)[1]	AGX Orin 64G (computing power customisable upgrade)[1]	AGX Orin 64G (computing power customisable upgrade)[1]

Power
Battery performance	—	—	Ternary lithium battery: full charge voltage 71.4V, capacity 20Ah; Solid-state battery: full charge voltage 74.8V, capacity 40Ah[1]	Ternary lithium battery: full charge voltage 71.4V, capacity 20Ah; Solid-state battery: full charge voltage 74.8V, capacity 40Ah[1]
Charging duration	—	—	Ternary lithium batteries: 2.5 hours; solid-state batteries: 3 hours[1]	Ternary lithium batteries: 2.5 hours; solid-state batteries: 3 hours[1]
