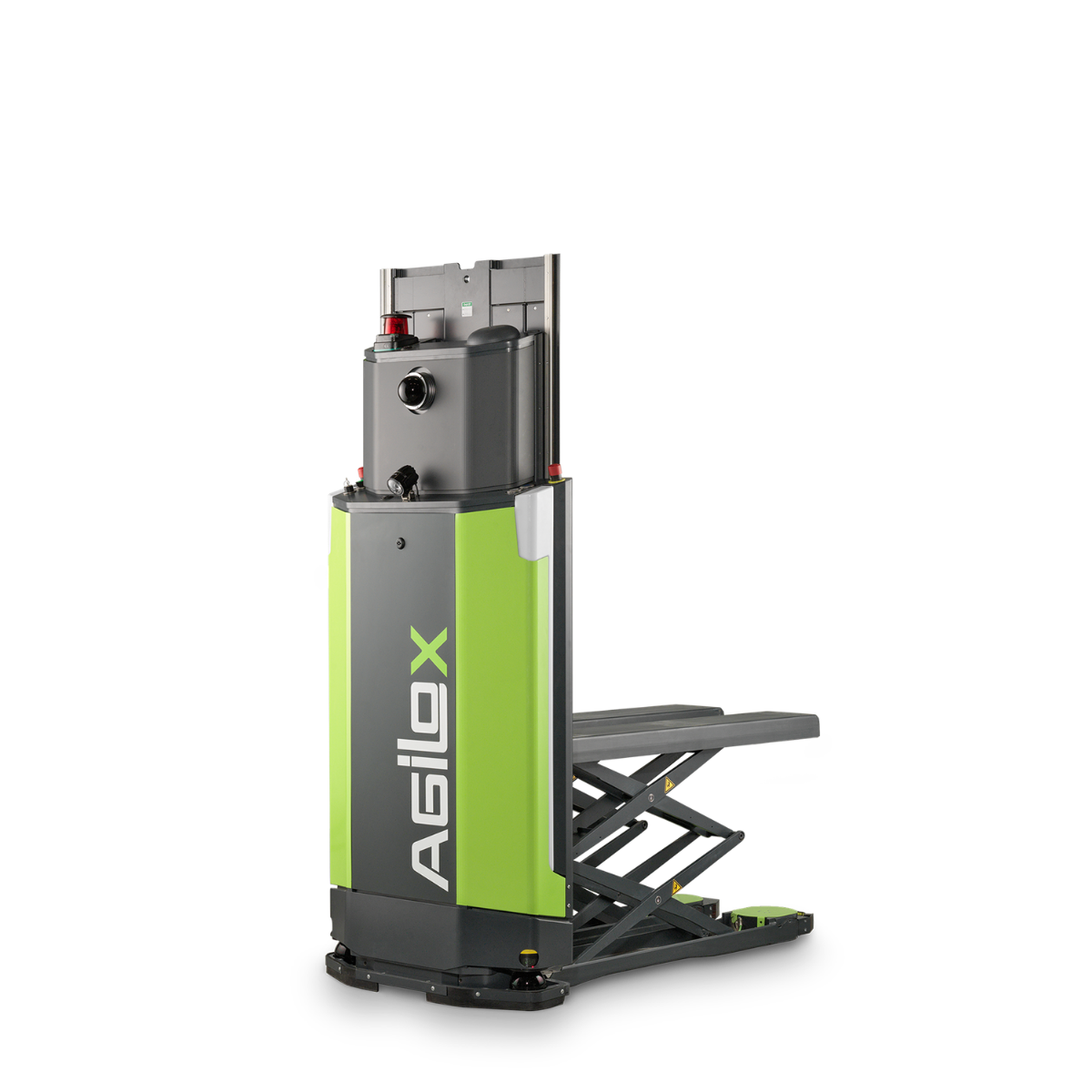

AGILOX ONE

compact and agile floor-to-floor AMR (Autonomous Mobile Robot)

2,100 mm; 82.7 in

2,100 MM (83 IN)

1,000 KG (2,204 lbs)

750 KG (1,653 lbs)

EUR 1 (Euro pallet); EUR 3 (Industrial pallet); EUR 6 (Euro half pallet); Boxes / Trays; FATH Adapter pallet for Dollies; Order picker cart; Custom load carriers

Additional 3D sensors in the direction of travel

Protection or discharge measure for operation in areas with ESD requirements

Light signal to increase safety in human-machine mixed traffic (blue, green, red), additional signal lights at the fork tips (white, yellow).

Selectable between mobile or stationary chargers.

Scanner for recognizing barcodes and QR codes.

implemented in less than 12 hours

capable of automatically picking up Euro pallets and expandable with up to eight conveyors on four levels {'conveyors': 'count', 'levels': 'count'}

1,000 kg; 2,204 lbs

750 KG (1,653 lbs)

500 mm; 19.7 in

1,511 x 810 x 1,862 MM (59 x 32 x 73 IN)

420 KG (926 lbs)

620 MM (24 IN)

1,100 MM (43 IN)

620 MM (24 in)

500 MM (20 IN)

1,000 MM (39 IN)

500 MM (20 in)

1,600 MM (63 IN)

1,400 MM (55 IN)

1,200 MM (47 IN)

1,400 MM (55 IN)

1400, 1600, and 1800 mm

1.4 m/s; 4.6 ft/s

omnidirectional drive concept with four drive units

forward and backward movements; parallel, diagonal, and rotational movements around its own axis

3 minutes charging = 1 hour operation {'charging_time': 'minutes', 'operation_time': 'hour'}

automatically detects obstacles and navigates around them

CE, UL, ISO 3691-4

safety laser scanner and obstacle avoidance

If one robot fails, the others take over to maintain the flow of goods.

1,000 kg up to 500 mm with a single scissor lift {'load': 'kg', 'height': 'mm'}

750 kg up to 1,000 mm with a double scissor lift {'load': 'kg', 'height': 'mm'}

X-SWARM technology
