Hitec HS-788HB

primary

1 / 2

Catalog ID / P100132

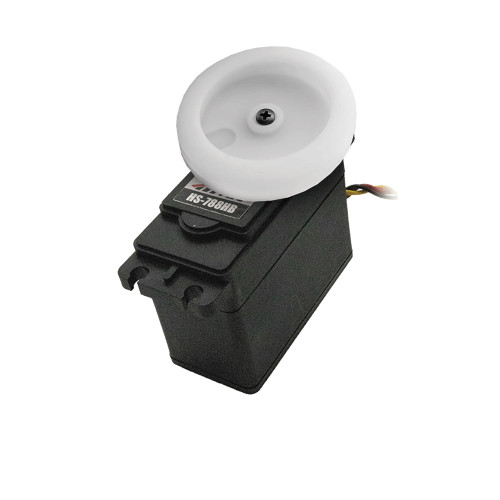

Hitec HS-788HB

Hitec HS-788HB actuator specifications: Stall torque: 13.2 / 183.31 @ 6.0V; Width: 29.0mm; Size/spline: Standard 25.

Category: Actuator
Type: motor / rc_servo
Manufacturer: Hitec
MPN: HS-788HB

Key selection specs

Stall torque

1.294 Nm

Nominal voltage

6 V

Stall torque

13.2 / 183.31 @ 6.0V

Width

29.0mm

Size/spline

Standard 25

Gear material

Resin

Open source page Open Robot Model Editor

Technical specs

Start with the specs that decide fit and purchase.

Motor specs

9

Motor kind: rc servo
Drive principle: servo actuator
Architecture: rc_servo_module
Interface: PWM
Control modes: PWM servo
Stall Torque Kg Cm: 13.2
Speed Sec Per 60deg: 1.38
Classification Evidence: Hitec manufacturer spec chart
Hitec Chart Size Spline: Standard 25

RC servo specs

4

Servo signal: PWM
PWM pulse center: 1500 us
Stall torque @ 6V: 13.2 kg.cm
Speed @ 6V: 1.38 s/60deg
